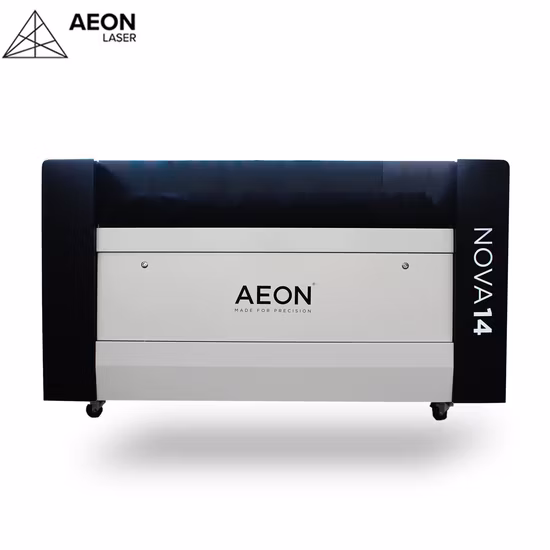

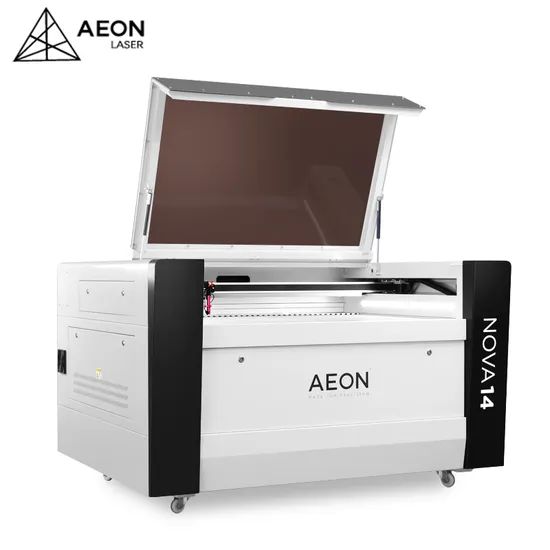

Nova14 55" X 35" Laser Etcher with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux
Nova14 55" X 35" laser etcher with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux
Send your inquiryDESCRIPTION
Basic Info
| Model NO. | NOVA14 |
| Structure Type | Standing Type |
| Laser Classification | Gaseous Laser |
| Safety Level | Class 1 |
| Laser Power | 80W/100W/130W/150W Glass Tube |
| Built-in WiFi | Included |
| Auto Focus | Included |
| Max Acceleration Speed | 5g |
| Work Table | Honeycomb + Blade |
| Working Area | 1400mm*900mm |
| Transport Package | Wooden Box |
| Specification | 1600*1000mm |
| Trademark | Aeon Laser |
| Origin | China |
| HS Code | 8456110090 |
| Production Capacity | 4800set/Year |
Product Description
Nova14 55" X 35" laser etcher with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux
The structure of the machine is very strong, which makes it more steady. The machine is equipped with a honeycomb and blade worktable and with model3000 or 5000 chillers, Max. engraving speed 1000mm/s; Max acceleration speed 1.8G.
Model : NOVA7 7050 (700*500mm) / NOVA10 1070 (1000*700mm) / NOVA14 1490 (1400*900mm) / NOVA16 1610 (1600*1000mm)
Power: 40w 60w 80W 100W 130W 150W
| Nova14 55" X 35" laser etcher with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux Technical Specifications: | |
| Working Area: | 1600*1000mm |
| Laser Tube: | 80W/100W/130W/150W |
| Laser Tube type: | CO2 sealed glass tube |
| Z-Axis Height: | 200mm adjustable |
| Input Voltage: | 220V AC 50Hz/110V AC 60Hz |
| Rated Power: | 1200W-1300W |
| Operating Modes: | Optimized raster, vector, and combined mode |
| Resolution: | 1000DPI |
| Max Engraving Speed: | 1000mm/sec |
| Max Cutting Speed: | 400mm/sec |
| Acceleration Speed: | 1.8G |
| Laser Optical Control: | 0-100% set by software |
| Minimum Engraving Size: | Chinese Character 2.0mm*2.0mm, English Letter 1.0mm*1.0mm |
| Locating Precision: | <=0.1 |
| Cutting Thickness: | 0-20mm(depends on different materials ) |
| Working Temperature: | 0-45°C |
| Environmental Humidity: | 5-95% |
| Buffer Memory: | 128Mb |
| Compatible Software: | CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software |
| Compatible Operation System: | Windows XP/2000/Vista, Win7/8//10, Mac OS, Linux |
| Computer Interface: | Ethernet/USB/WIFI |
| Worktable: | Honeycomb + blade |
| Cooling system: | water cooling |
| Air Pump: | External 135W Air Pump |
| Exhaust Fan: | External 750W blower |
| Machine Dimension: | 2100*1510*1025mm ( 82 43/64" x 59 29/64" x 40 23/64" ) |
| Machine Net Weight: | 640Kg |
| Machine Packing Weight: | 660Kg |
